产品分类
产品名称
板式高压球阀BKHU
产品描述
|

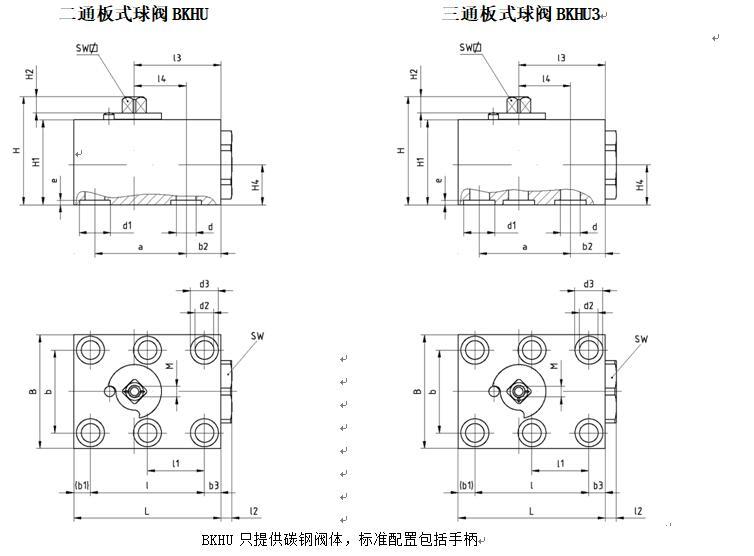

通径 DN |
工作压力 bar |
实际内 径LW |
a mm |
B mm |
b mm |
b1 mm |
b2 mm |
b3 mm |
d mm |
d1 mm |
d2 mm |
d3×沉孔深 mm |
H mm |
|
6 |
500 |
6 |
39 |
49 |
35 |
7.5 |
9.5 |
7.5 |
6 |
13 |
8.5 |
- |
49 |
|
10 |
500 |
9 |
44 |
55 |
40 |
8 |
17 |
8 |
9.5 |
15 |
9 |
13.5×8.5 |
52 |
|
13 |
500 |
13 |
58 |
60 |
45 |
7.5 |
24.5 |
8 |
13 |
20 |
9 |
13.5×8.5 |
61 |
|
20 |
400 |
20 |
69 |
70 |
51 |
11 |
29 |
10 |
20 |
30 |
10.5 |
17.5×10.5 |
86 |
|
25 |
400 |
24 |
81 |
80 |
60 |
11 |
31 |
11 |
24 |
35 |
13 |
18.5×12.5 |
96 |
|
32 |
315 |
32 |
96 |
100 |
78 |
12 |
40.5 |
17.5 |
32 |
40 |
13 |
19.5×12.5 |
119 |
|
40 |
315 |
38 |
112 |
130 |
95 |
28.5 |
42.5 |
42.5 |
38 |
48.5 |
17 |
25.0×16.5 |
119 |
|
50 |
315 |
48 |
136 |
150 |
112 |
38 |
47 |
47 |
48 |
55 |
22 |
33.0×21.5 |
134 |
|
通径 DN |
H1 mm |
H2 mm |
H4 mm |
e mm |
L mm |
l mm |
l1 mm |
l2 mm |
l3 mm |
l4 mm |
SW mm |
SW□ mm |
M mm |
重量 kg |
|
6 |
38 |
8 |
19 |
2 |
57 |
42 |
- |
6 |
31.5 |
22 |
27 |
9 |
M5 |
1.1 |
|
10 |
41 |
8 |
19 |
2 |
71 |
55 |
- |
6 |
42 |
25 |
30 |
9 |
M5 |
2 |
|
13 |
50 |
8 |
27 |
2 |
98.5 |
83 |
41.5 |
7 |
56 |
31.3 |
32 |
9 |
M5 |
2.3 |
|
20 |
70 |
12 |
38.5 |
3 |
118 |
97 |
48.5 |
7 |
67 |
38 |
41 |
14 |
M6 |
3.4 |
|
25 |
80 |
12 |
45 |
3 |
137 |
115 |
57.5 |
8 |
74 |
43 |
46 |
14 |
M6 |
5.2 |
|
32 |
100 |
13.5 |
54 |
3 |
165.5 |
136 |
68 |
10 |
90.5 |
50 |
60 |
17 |
M8 |
10.5 |
|
40 |
100 |
13.5 |
50 |
3 |
183 |
112 |
56 |
10 |
98.5 |
56 |
70 |
17 |
M8 |
15.1 |
|
50 |
115 |
13.5 |
54 |
3 |
221 |
136 |
68 |
20 |
115 |
68 |
85 |
19 |
M8 |
24 |
球阀型号
|
球阀通径DN |
常用二通球阀型号 |
常用三通球阀型号 |
|
06 |
BKHU DN06 1125 |
BKHU3 DN06 1125* |
|
10 |
BKHU DN10 1125 |
BKHU3 DN10 1125* |
|
13 |
BKHU DN13 1125 |
BKHU3 DN13 1125* |
|
20 |
BKHU DN20 1125 |
BKHU3 DN20 1125* |
|
25 |
BKHU DN25 1125 |
BKHU3 DN25 1125* |
|
32 |
BKHU DN32 1125 |
BKHU3 DN32 1125* |
|
40 |
BKHU DN40 1125 |
BKHU3 DN40 1125* |
|
50 |
BKHU DN50 1125 |
BKHU3 DN50 1125* |

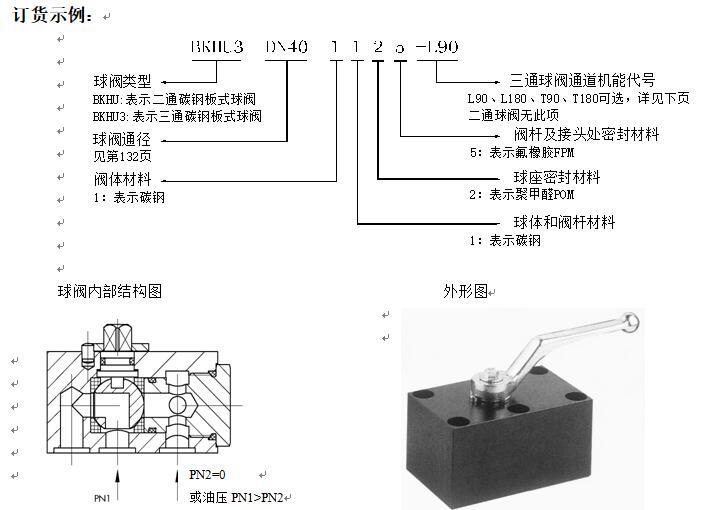

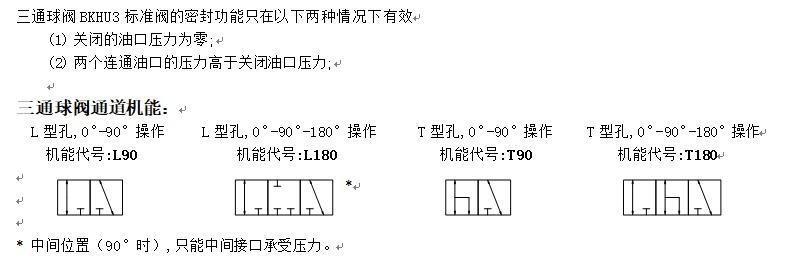

*三通球阀订货时请注明通道机能代号，见订货示例。
