高压碳钢直通球阀
产品描述

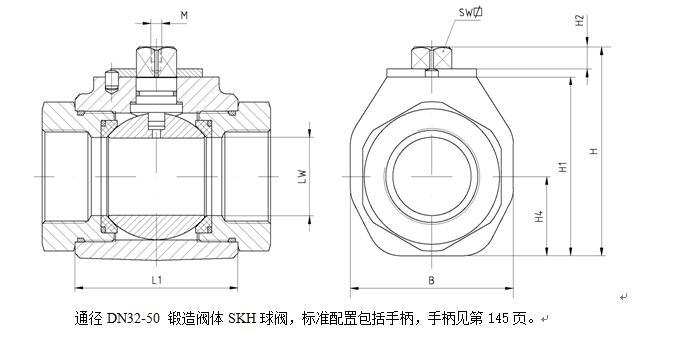

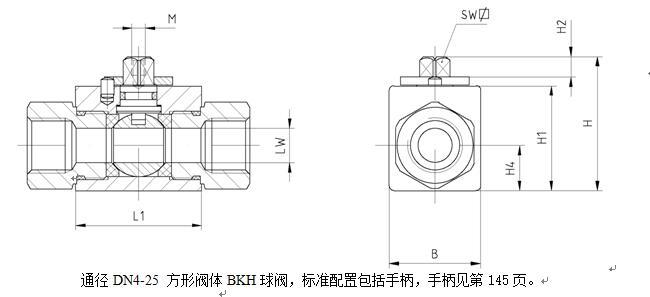

阀体尺寸及工作压力(适用于各种接口形式) 单位：mm
|
通径DN |
工作压力 |
L1 |
B |
H |
H1 |
H2 |
H4 |
M |
SW |
|
4 至 8 |
500 bar |
36 |
26 |
43.5 |
32 |
8 |
13 |
M5 |
9 |
|
10 |
500 bar |
43 |
32 |
49 |
38 |
8 |
16 |
M5 |
9 |
|
13 |
500 bar |
48 |
35 |
51 |
40 |
8 |
17.5 |
M5 |
9 |
|
16 |
500 bar |
48 |
38 |
62 |
46 |
12 |
19 |
M6 |
12 |
|
20 |
400 bar |
62 |
49 |
73 |
57 |
12 |
24.5 |
M6 |
14 |
|
25 |
350 bar |
66 |
60 |
76 |
60 |
12 |
26.5 |
M6 |
14 |
|
32 |
420 bar |
80 |
76 |
104 |
84 |
13.5 |
38 |
M8 |
17 |
|
40 |
420 bar |
85 |
84 |
111 |
92 |
13.5 |
42 |
M8 |
17 |
|
50 |
420 bar |
100 |
100 |
130 |
111 |
13.5 |
50 |
M8 |
19 |
|
常用型号 （球座密封为POM） |
通径 DN |
实际内 径LW |
D |
RA mm |
阀总 长L |
i mm |
SW1 |
重量 kg |
|
BKH G1/8 04 11251 |
4 |
5 |
G 1/8〞 |
- |
69 |
9 |
22 |
0.35 |
|
BKH G1/4 06 11251 |
6 |
6 |
G 1/4〞 |
- |
69 |
12 |
22 |
0.35 |
|
BKH G3/8 08 11251 |
8 |
8 |
G 3/8〞 |
- |
69 |
12 |
22 |
0.35 |
|
BKH G3/8 10 11251 |
10 |
10 |
G 3/8〞 |
- |
73 |
12 |
27 |
0.5 |
|
BKH G1/2 13 11251 |
13 |
13 |
G 1/2〞 |
- |
85 |
14 |
30 |
0.65 |
|
BKH G3/4 20 11251 |
20 |
20 |
G 3/4〞 |
- |
96 |
17 |
41 |
1.5 |
|
BKH G1 25 11251 |
25 |
24 |
G1〞 |
- |
113 |
19 |
46 |
2 |
|
BKH G11/4 25 11251 |
25 |
24 |
G11/4〞 |
- |
121 |
20 |
50 |
2.1 |
|
SKH G11/4 32 31251 |
32 |
32 |
G11/4″ |
- |
110 |
20 |
60 |
3.2 |
|
SKH G11/2 32 31251 |
32 |
32 |
G11/2″ |
- |
135 |
24 |
60 |
3.2 |
|
SKH G11/2 40 31251 |
40 |
38 |
G11/2″ |
- |
120 |
24 |
70 |
4 |
|
SKH G2 40 31251 |
40 |
38 |
G2″ |
- |
147 |
26 |
75 |
4.7 |
|
SKH G2 50 31251 |
50 |
48 |
G2″ |
- |
140 |
28 |
85 |
5.9 |
|
BKH 1/8NPT 04 11251 |
4 |
5 |
1/8〞NPT |
- |
69 |
12 |
22 |
0.35 |
|
BKH 1/4NPT 06 11251 |
6 |
6 |
1/4〞NPT |
- |
69 |
17 |
22 |
0.35 |
|
BKH 3/8NPT 10 11251 |
10 |
10 |
3/8〞 NPT |
- |
73 |
17 |
27 |
0.5 |
|
BKH 1/2NPT 13 11251 |
13 |
13 |
1/2〞 NPT |
- |
92 |
22 |
30 |
0.65 |
|
BKH 3/4NPT 20 11251 |
20 |
20 |
3/4〞NPT |
- |
97 |
23 |
41 |
1.5 |
|
BKH 1NPT 25 11251 |
25 |
24 |
1〞 NPT |
- |
113 |
27 |
46 |
2 |
|
SKH 11/4NPT 32 31251 |
32 |
32 |
11/4″NPT |
- |
115 |
28 |
60 |
3.2 |
|
SKH 11/2NPT 40 31251 |
40 |
38 |
11/2″NPT |
- |
135 |
28 |
70 |
4 |
|
SKH 2NPT 50 31251 |
50 |
48 |
2″NPT |
- |
140 |
30 |
85 |
5.9 |
|
BKH 06L 04 11251 |
4 |
5 |
M12×1.5 |
6 |
67 |
7 |
22 |
0.3 |
|
BKH 08L 06 11251 |
6 |
6 |
M14×1.5 |
8 |
67 |
7 |
22 |
0.3 |
|
BKH 10L 08 11251 |
8 |
8 |
M16×1.5 |
10 |
71 |
8 |
22 |
0.3 |
|
BKH 12L 10 11251 |
10 |
10 |
M18×1.5 |
12 |
75 |
8 |
27 |
0.5 |
|
BKH 15L 13 11251 |
13 |
13 |
M22×1.5 |
15 |
84 |
9 |
30 |
0.6 |
|
BKH 18L 13 11251 |
13 |
13 |
M26×1.5 |
18 |
84 |
9 |
30 |
0.6 |
|
BKH 18L 16 11251 |
16 |
15 |
M26×1.5 |
18 |
83 |
9 |
32 |
0.75 |
|
BKH 22L 20 11251 |
20 |
20 |
M30×2 |
22 |
102 |
11 |
41 |
1.5 |
|
BKH 28L 25 11251 |
25 |
24 |
M36×2 |
28 |
108 |
11 |
46 |
2 |
|
BKH 35L 25 11251 |
25 |
24 |
M45×2 |
35 |
114 |
13 |
50 |
2.1 |
|
SKH 35L 32 31251 |
32 |
32 |
M45×2 |
35 |
128 |
13 |
60 |
3 |
|
SKH 42L 32 31251 |
32 |
32 |
M52×2 |
42 |
128 |
13 |
60 |
3 |
|
SKH 42L 40 31251 |
40 |
38 |
M52×2 |
42 |
133 |
13 |
70 |
3.8 |
|
BKH 06S 04 11251 |
4 |
5 |
M14×1.5 |
6 |
71.5 |
9 |
22 |
0.35 |
|
BKH 08S 04 11251 |
4 |
5 |
M16×1.5 |
8 |
73 |
9 |
22 |
0.35 |
|
BKH 10S 06 11251 |
6 |
6 |
M18×1.5 |
10 |
73 |
9 |
22 |
0.35 |
|
BKH 12S 08 11251 |
8 |
8 |
M20×1.5 |
12 |
77 |
9 |
22 |
0.35 |
|
BKH 14S 10 11251 |
10 |
10 |
M22×1.5 |
14 |
84 |
11 |
27 |
0.5 |
|
BKH 16S 13 11251 |
13 |
13 |
M24×1.5 |
16 |
87 |
11 |
30 |
0.6 |
|
BKH 20S 16 11251 |
16 |
15 |
M30×2 |
20 |
91 |
13 |
32 |
0.75 |
|
BKH 25S 20 11251 |
20 |
20 |
M36×2 |
25 |
110 |
15 |
41 |
1.5 |
|
BKH 30S 25 11251 |
25 |
24 |
M42×2 |
30 |
120 |
17 |
46 |
2.1 |
|
BKH 38S 25 11251 |
25 |
24 |
M52×2 |
38 |
125 |
19 |
55 |
2.3 |
|
SKH 38S 32 31251 |
32 |
32 |
M52×2 |
38 |
140 |
19 |
60 |
3.1 |
