产品分类
产品名称
001系列旋转接头
产品描述

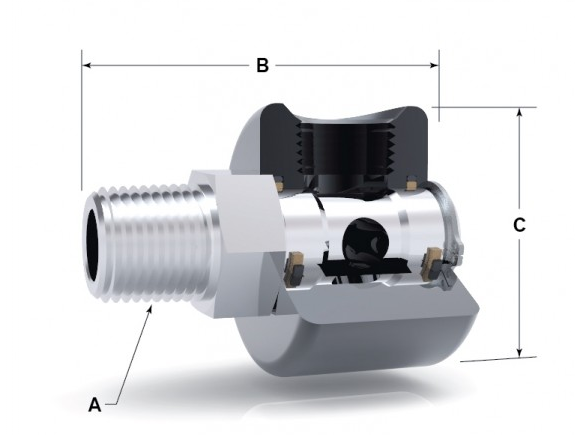

| PART # | A Thread | B Length | C Diameter | |
|---|---|---|---|---|
| 10050-0101-000 | 0.125 NPT | 1.476 | 1.234 | |
| 10051-0101-000 | 0.250 NPT | 2.088 | 1.484 | |
| 10052-0101-000 | 0.375 NPT | 2.088 | 1.484 | |
| 10053-0101-000 | 0.500 NPT | 2.710 | 1.950 | |
| 10054-0101-000 | 0.750 NPT | 3.337 | 2.700 | |
| 10055-0101-000 | 1.000 NPT | 3.592 | 3.200 |
| Max. Hydraulic Pressure | 7,000 PSI |
| Max. Air Pressure | 250 PSI |
| Max. Vacuum Pressure | 28" Hg |
| Max. Temperature | 300° F |
