产品名称

003系列旋转接头

产品描述

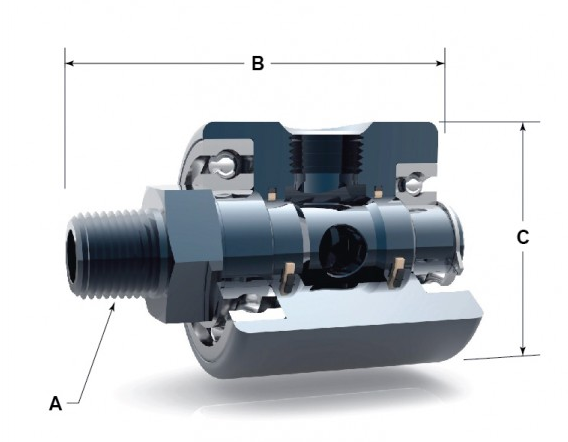

PART # A Thread B Length C Diameter
10050-0301-000 0.125 NPT 2.142 1.484
10051-0301-000 0.250 NPT 3.096 1.828
10052-0301-000 0.375 NPT 3.096 1.850
10053-0301-000 0.500 NPT 3.941 2.450
10054-0301-000 0.750 NPT 4.442 2.700
10055-0301-000 1.000 NPT 4.624 3.450
10056-0301-000 1.250 NPT 5.129 3.450
10057-0301-000 1.500 NPT 5.742 3.950
10058-0301-000 2.000 NPT 6.410 4.450



Max. Hydraulic Pressure 7,000 PSI
Max. Air Pressure 250 PSI
Max. Vacuum Pressure 28" Hg
Max. Temperature 300°
