SAE法兰式碳钢球阀
产品描述
3000psi SAE法兰式球阀尺寸以及工作压力(中高压ISO6162-1)
|
通径 DN |
压力 bar |
法兰 规格 |
LW mm |
L mm |
A mm |
C mm |
E mm |
F mm |
G |
S mm |
L1 mm |
B mm |
H mm |
H1 mm |
H2 mm |
H4 mm |
M mm |
SW mm |
|
13 |
315 |
1/2” |
13 |
104 |
54 |
46 |
38.1 |
17.5 |
M8 |
15 |
48 |
35 |
51 |
40 |
8 |
17.5 |
M5 |
9 |
|
20 |
315 |
3/4” |
20 |
121 |
65 |
52 |
47.6 |
22.3 |
M10 |
18 |
62 |
49 |
73 |
57 |
12 |
24.5 |
M6 |
14 |
|
25 |
315 |
1” |
24 |
133 |
70 |
59 |
52.4 |
26.2 |
M10 |
18 |
66 |
60 |
76 |
60 |
12 |
26.5 |
M6 |
14 |
|
32 |
250 |
11/4” |
32 |
163 |
79 |
73 |
58.7 |
30.2 |
M10 |
18 |
80 |
76 |
104 |
84 |
13.5 |
38 |
M8 |
17 |
|
40 |
200 |
11/2” |
38 |
168 |
94 |
83 |
69.9 |
35.7 |
M12 |
18 |
85 |
85 |
111 |
92 |
13.5 |
42 |
M8 |
17 |
|
50 |
200 |
2” |
48 |
186 |
102 |
97 |
77.8 |
42.9 |
M12 |
25 |
100 |
100 |
130 |
111 |
13.5 |
50 |
M8 |
19 |
|
65/50 |
160 |
21/2” |
48 |
174 |
114 |
109 |
88.9 |
50.8 |
M12 |
26 |
100 |
100 |
130 |
111 |
13.5 |
50 |
M8 |
19 |
6000psi SAE法兰式球阀尺寸以及工作压力(高压ISO6162-2)
|
通径 DN |
压力 bar |
法兰 规格 |
LW mm |
L mm |
A mm |
C mm |
E mm |
F mm |
G |
S mm |
L1 mm |
B mm |
H mm |
H1 mm |
H2 mm |
H4 mm |
M mm |
SW mm |
|
13 |
400 |
1/2” |
13 |
104 |
56 |
48 |
40.5 |
18.2 |
M8 |
16 |
48 |
35 |
51 |
40 |
8 |
17.5 |
M5 |
9 |
|
20 |
400 |
3/4” |
20 |
121 |
71 |
60 |
50.8 |
23.8 |
M10 |
18 |
62 |
49 |
73 |
57 |
12 |
24.5 |
M6 |
14 |
|
25 |
400 |
1” |
24 |
133 |
81 |
70 |
57.2 |
27.8 |
M12 |
24 |
66 |
60 |
76 |
60 |
12 |
26.5 |
M6 |
14 |
|
32 |
400 |
11/4” |
32 |
163 |
95 |
78 |
66.6 |
31.8 |
M14 |
26 |
80 |
76 |
104 |
84 |
13.5 |
38 |
M8 |
17 |
|
40 |
400 |
11/2” |
38 |
168 |
113 |
95 |
79.3 |
36.5 |
M16 |
28 |
85 |
85 |
111 |
92 |
13.5 |
42 |
M8 |
17 |
|
50 |
400 |
2” |
48 |
186 |
133 |
114 |
96.8 |
44.5 |
M20 |
30 |
100 |
100 |
130 |
111 |
13.5 |
50 |
M8 |
19 |
|
通径 |

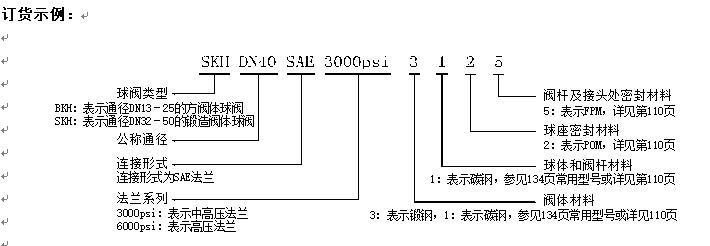

3000psi常用球阀型号（密封POM、FPM） |
6000psi常用球阀型号（密封POM、FPM） |
|
13 |
BKH DN13 SAE 3000psi 1125 |
BKH DN13 SAE 6000psi 1125 |
|
20 |
BKH DN20 SAE 3000psi 1125 |
BKH DN20 SAE 6000psi 1125 |
|
25 |
BKH DN25 SAE 3000psi 1125 |
BKH DN25 SAE 6000psi 1125 |
|
32 |
SKH DN32 SAE 3000psi 3125 |
SKH DN32 SAE 6000psi 3125 |
|
40 |
SKH DN40 SAE 3000psi 3125 |
SKH DN40 SAE 6000psi 3125 |
|
50 |
SKH DN50 SAE 3000psi 3125 |
SKH DN50 SAE 6000psi 3125 |
|
65/50 |
SKH DN65/50 SAE 3000psi 3125 |
|
